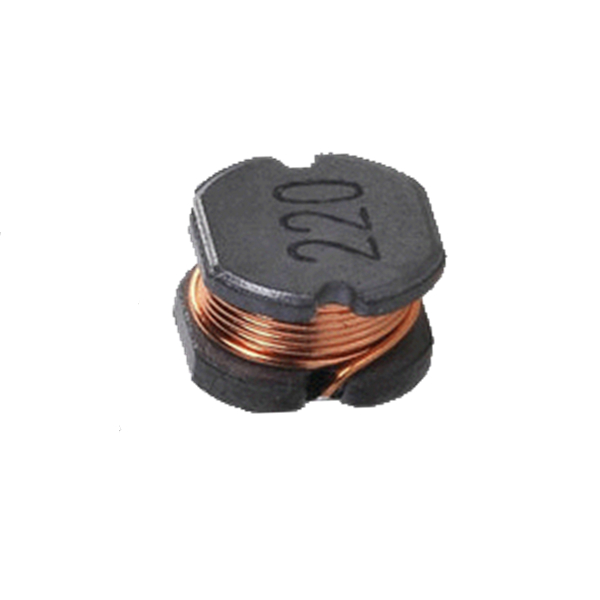

Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product

Chip Power Inductor SMD Packaging Wire Winding For Electronic Product Drum Core Surface Mount Unshielded Power Inductors

CMLF0302 Series

Features:

• Excellent solderability and high heat resistance
• Excellent terminal strength construction.
• Packed in embossed carrier tape and can be used by automatic mounting machine.
• Portable gaming devices, personal navigation systems, personal multimedia devices；
• Automotive systems;
• Telecomm base stations.

Applications:

• Power supply for VCR,OA equipment ,LCD television set notebook, DC to DC converters, DC to AC inverters etc.

Specification:

Dimensions:

Material:

Electrical Characteristics :

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Packaging and Marking:

• Carrier Tape Dimensions

• Taping Dimensions

Packaging Quantity:

• Standard Packing Quantity:3000 pcs/reel

Note

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).
• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient.
